Centrifuge-Disc Auto

...........................................................................................................................................................................

Used Westfalia centrifuge model SAMM 15006, self cleaning separator. Stainless steel. Rated 15000 liter per hour. Bowl speed 4500 rpm. Includes tools, control panel and some spares. (MSA 120-01-076).

Item 12956-001

Used Alfa Laval model MAPX 207 SGT 29 automatic desludging disc centrifuge. Open Inlet, Fixed paring device on the light phase and open discharge on the heavy phase. Timer triggered total ejection. Separator (3-way) design. Has 7.5 HP 3/60/460 V 1755 RPM Motor. S/N 2936036

Item 11868-001

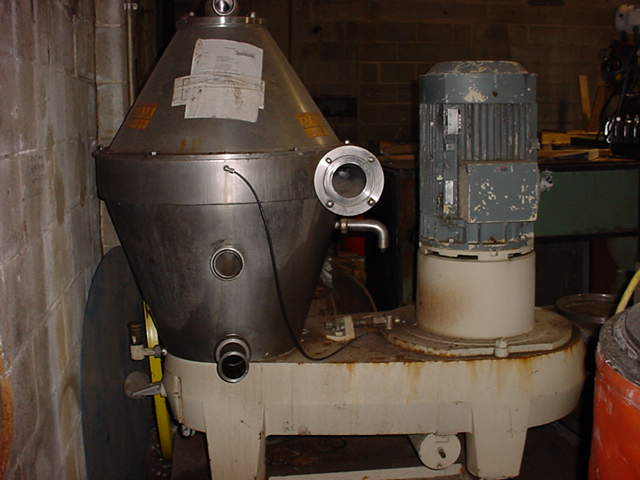

Used Alfa Laval model AX-213S-31B-60 high speed, high ""G"" separator. Max speed of 6810 rpm. Clarifier design. Stainless steel wetted parts. Timed discharge of the solids. 50 Hp 3 phase 60 cycle 460volt 3530 rpm motor. Some tools and spares included. Spare bowl available.

S/N 2985411

Item 10746-001

Used Delaval auto desludger model BRPX-207-35S-60. Type 316 stainless steel with a KN deep sludge cover. Two way clarifier. Equipped with a 10 hp directly connected clutch motor drive. Built 1974. Last used in dairy application. Includes timer box and tools.

Item 10409-001

Used Oil skid consisting of: (1) Veronesi model BSGEL 370 centrifuge 7800 rpm bowl speed, 9500""Gs"" 7.5 hp motor, class ""B"" rating and (1) Veronesi model SEB130 Control panel, and heater included. Some tools for both machines included.

Item 10750-001

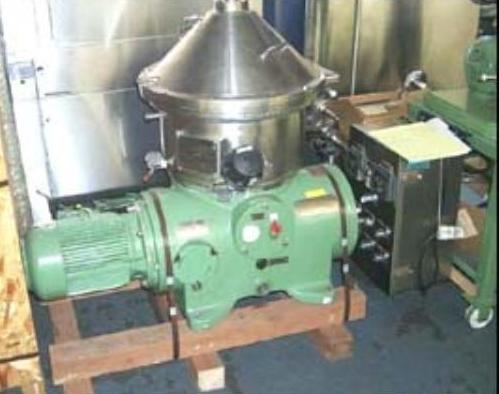

Used Westfalia model CSA19-06-476 10 HP centrifuge. Biotech separator design. 316 stainless steel construction, steam sterilizable with CIP feature, self cleaning 12"" disc type bowl, 8150 RPM, rated solids 1.3 Kg/decimeter, heavy liquid 1.0 Kg/decimeter, complete with 7.5 KW, 230/460 motor, tools. New 1990. Previously used in Biotech application.

Item 11512-001

Used Westfalia Model OSA35-02-066 automatic desludging disc type centrifuge. Separator design (3 way). Pumped discharge of the light phase, gravity discharge of the heavy phase. 6600 bowl speed. On a skid with controls and a heater. 20 HP drive motor, 3/60/230-460 volts, 1760 rpm. S/N 1675 421. With tools. Mounted on a platform 8' 6'' X 9' long. Built 1982.

Item 11868-003

Used Westfalia Model SA 14-01-076 Separator type Disc Centrifuge. Both phases discharged by pairing device pump. Reversing separator disc. Sanitary Covers. Stainless steel contact parts. Bowl speed 7,700 R.P.M. Flanged 10 HP 3/60/440V motor. Driven by friction clutch. Some tools included.

Item 13002-001

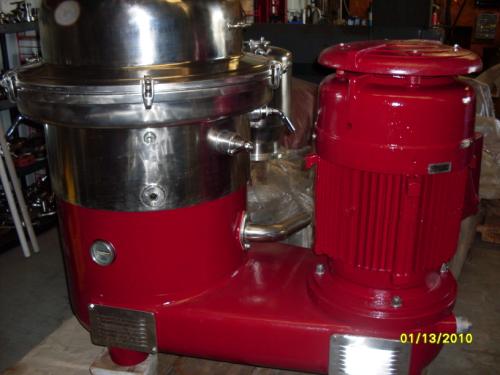

Used Westfalia model SA 40-01-177 separator. Both liquid phases are pumped. All stainless steel contacts. 40 HP 460 volt motor. Base plate included.

Item 11616-001

Used Model SAMR-15037 Westfalia De-sludger clarifier, stainless steel contact surfaces, 4650 rpm max. bowl speed, bowl has 4.25 gallon sludge capacity, rated to 100 gmp, with 40 HP 3565 RPM 230/460 Volt motor. Item 11982-001

Item 12010-001

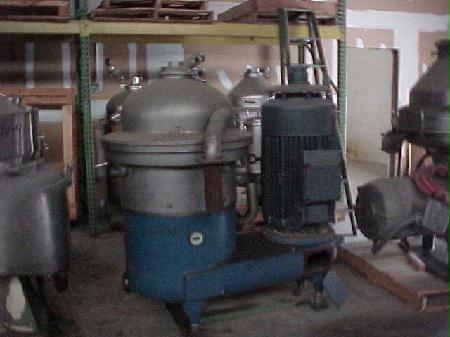

Used Westfalia model SAOOH 15037 (SA40-03) disc centrifuge. Stainless steel bowl, housing and covers. SN 1631060. Belt driven by 30 Kw Motor 3 phase 50 cycle 2890 rpm.

Item 11915-001

Used Rebuilt Westfalia SA40-03-177 disc centrifuge. All wetted parts being stainless steel. Separator design. Rebuilt on base plate with tools and spare gaskets. Rated up to approximately 40 GPM With PLC control panel.

Item 12003-001

Used REBUILT GEA Westfalia model SA 45-03-177 self-cleaning disc centrifuge. Includes: Frame, Bowl, Motor, Cover, Valves, Foundation frame, Tools, Controls, Manual and some spare parts. Separator Bowl design: Open light phase, paring device Heavy phase. 4920 RPM. Sanitary design. Flange type vertical mounted motor. SN 1697 834 Mfg 1989. Controls.

Item 12940-002

Used Alfa Laval centrifuge, model WSPX-204-TGT-74-60/4139-9, stainless steel contacts, deep sludge cover. Light phase and heavy phase centripetal pump, timed total discharge, purifier design, direct driven by a 3 hp, 3/60/208-230-460 volt, 1765 rpm motor. Set up on a Vepco Model TB21X38X204 Tramp Oil Filter Media/Centrifuge Separation System consisting of the WSPX204, three (3) system pumps and a steel filter media flight chain conveyor. Unitized system with controls (no filter media). S/N 4031126

Item 11832-001

Used GEA Westfalia GSC 45-06-177 clarifier. Previously used in a brewery. Belt driven approximately 25 hp vertical motor. 7230 RPM bowl speed. On stainless steel skid with piping, pumps and controls. Full set of tools and manual. Item 14006-001

Used GEA Westfalia Model SA1-03-076 self cleaning centrifuge. Separator design. Heavy phase paring device, light phase gravity.Has Reeves vari drive.

Item 13042-002

Used GEA Westfalia Model SA1-02-076 self cleaning centrifuge. Separator design. Light phase via paring device, Heavy phase gravity. Stainless steel contacts. Reeves vari speeed drive.

Item 13042-001

Used Westfalia model SA40-06-177 automatic disc centrifuge. Stainless steel contacts. 40 hp motor. Heavy phase 1.0 Kg/cm2. Solid phase 1.1 Kg/cm2. Includes some tools and speed controller. Serial # 1652613.

Item 10827-001

Used- GEA Westfalia CTC-1-06-107 Solid Bowl Disc Centrifuge. 316 Stainless steel (product contact areas). Maximum bowl speed 12000 rpm, clarifier design (liquid/solids separation), rated 1.0 kg/cu dm heavy phase, 1.4 kg/cu dm solids, 1 kW motor, centripetal pump liquid discharge, belt drive configuration, bench top design with control panel with VFD motor controller, 120 volt. Serial number 9013-440 built 2003

Item 13976-001

Used Type GSE 125-06-777 Westfalia Separator. Self-Cleaning Disc Clarifier. Liquid discharge: With centripetal pump under pressure. Feed and discharge are in a closed system. The product feed and discharges in the bowl are hydro hermetically sealed. – Hydraulic capacity: 50,000 l/h – Bowl speed: 5900 rpm – Motor: 55 Kw 75 Hp 3 phase 50/60 cycle Motor – Process temperature range: 5–95°C. Built 2012. Serial Number. 1732-479. Some tools included. Item 14004-001
