Surplus UNUSED DME Brewery Equipment:
Brewhouse Equipment Includes:
25 bbl mash mixer
25 bbl lauter tun c/w rakes, wch underflush
12" knife valve (wheel)
Magnetic particle sanitary flow meter
20 bbl Steam Kettle
20 bbl Whirlpool
Hop Back 70 gallon
Work Platform 4 vessels - 4x16 ft
Wort Sink
Control Panel Mounting Bracket
20 bbl Heat Exchanger cold liquor/wort (10 FG LF-150 72 plates)
Wort Aeration Assembly
Water System Includes:
Grist Hydrator
60bbl hot liquor jacketed
hot liquor pump
40 bbl cold liquor tank (no jacket)
external heat exchanger option (cold liquor)
cold liquor pump
Misc Items:
Piping (3 vessels)
Mash Transfer Piping
Liquor Blending System
Mash Pump
Wort Pump
Air Actuator for s/s/ valve
Air Solenoid Valve Bank
Brewhouse Transfer System
Control Systems
Brewhouse Control Panel PLC - 4 Vessel
Cellar Control Panel (12 Controllers)
Cellar Equipment
40 bbl Unitank (DME-Canada)
40 bbl Bright Tank (DME-Canada)
CIP Equipment
Portable CIP Pump C/W VFD
Yeast Handling Equipment
Yeast Storage (modified keg)
Keg Washer
Sankey III Keg Washer/Racker
Allied 40 HP Low Pressure Steam Boiler W/blow down, chem inject, condensate pump
30 HP chiller with redundant pump upgrade
Item 12987-001

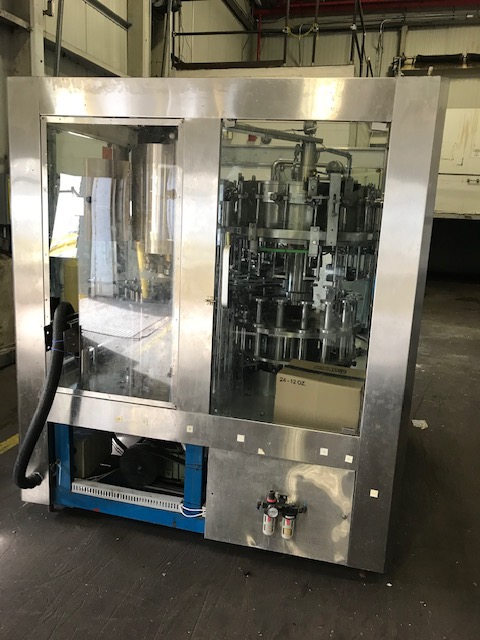

Used Gongda Beer Bottling Line, rated 2000-3000 BPH. Line currently set up for 355 ml Long Neck glass bottles. Beer rinsing / filling / capping monoblock machine model GD-BCGF16166. 2 Group Bottle Dryer Model GD-FG2. Auto Labeling Machine, Self Adhesive, 3 labels - Model GD-BTB-03. Bottle Feed table 1000*750 MM. Beer Isobaric Bottling Monoblock machine combines, bottle washing, filling and capping. Bottle rinsing 16 nozzles. Filler 16 nozzles. Capper 6 Heads. Capacity 2000-3000 BPH. Bottle type: Height 150-300 mm. Bottleneck 50-85 mm. Air consumption .2 m3/min (0.4~0.6Mpa). CO2 Consumption 160g/100L. Water consumption: Vacuum Pump 0.20 m3/h. Washing 0.8 m3/h. Main motor. 2.2Kw. Hopper Motor .18 KW. Vacuum Pump Motor 1.1KW. Washing Pump Motor .37Kw. Bubbling Motor .37Kw. Bottle Dryer Machine Model GD-FG-02. Total Power:2*4=8KW. Power of each wind knife: 4kw Wind mouth:550MM(length).Max. flow:300M3/H Max. pressure:30 KPA Labeller Model:GD-BTB-03. Self-adhesive labels. Label position: front, back,neck Bottle size: D:50~85mm H:150~360mm. Capacity: 2000-4000 BPH. Label sticking precision: 1mm. Label width: 50~130mm. Air pressure: 0.35~0.5Mpa. Air flow: 0.9m3/min.. Power: 1.5KW. Weight: 1200kg. Overall size: (L*W*H)2800×1710×1960mm Includes some conveyor. Infeed approximately 6’ for filler - exit conveyor approximately 30” which feeds the dual air blowers - approximately 6’ exit conveyor with 90 degree to another 6’ long piece feeding the labeller and then the accumulation table approximately 24” X 80”. System Supplied by Brew Bev originally. Manufactured by Gongda Machine Co. Item 12942-001

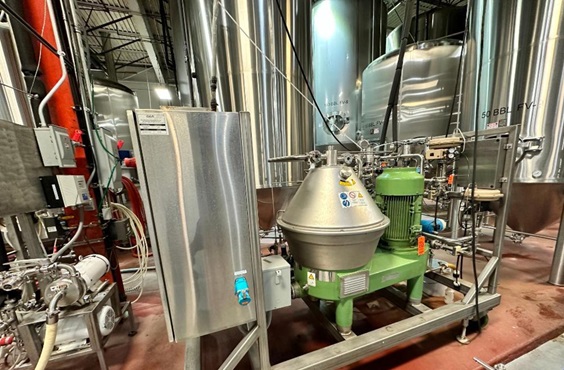

Used GEA Westfalia GSC 45-06-177 clarifier. Previously used in a brewery. Belt driven approximately 25 hp vertical motor. 7230 RPM bowl speed. On a stainless steel brewery skid with piping, pumps, turbidity sensors and Allen Bradley Panel view 1000 touch screen controller. Optek 4000 product feed and discharge turbidity transmitter. VFD controls. Full set of tools and manual. SN 1727-409
Item 14006-001
