Used approximately 20 gallon Pfaudler glass lined vertical tank. 20"" diameter X 14"" deep. Open top. Dished bottom with valve. Rated 30/FV @ 650 degrees F. Serial number E277-0383. Built 1977.
Item 10944-010
Glass Lined Tanks
Used 200 gallon Dedietrich glass lined clamped top mix tank. Internal rated 25 psi / Full vacuum @ 500 degrees F. Type 3008 glass. 3 hp 1730 rpm 3 phase 60 cycle 230/460 volt motor. Agitator. Baffle. 4 legs. Serial number 32059. National board number 2636. Built 1980.
Item 11500-043
Used 200 gallon Pfaudler glass lined clamped top agitated tank. Internal rated 100/FV @ 450 degrees F. 3.5 DTW drive 15:1 ratio. 3 blade retreat curve agitator. White glass with calibration lines. Fin type baffle. Manway on top head with spring assist. Center bottom outlet. Serial number J050042. 9129 glass. National board number 50756. Built 2002. 4 legs.
Item 11500-034
Used 50 gallon Dedietrich glass lined vertical tank. Clamped dished top. Dished bottom. Internal rated 25 psi / Full vacuum @ 400 degrees F. Glass type 3009. Serial Number 36555. National board # 7429. Built 2002. 4 Legs.
Item 11500-014
Used 50 gallon Dedietrich glass lined vertical tank. Clamped dished top. Dished bottom. Internal rated 25 psi / Full vacuum @ 400 degrees F. Glass type 3009. Serial Number 36554. National board # 7428. Built 2002. Center bottom outlet. 4 Legs.
Item 11500-011
Used 50 gallon Dedietrich glass lined vertical tank. Clamped dished top. Dished bottom. Internal rated 25 psi / Full vacuum @ 400 degrees F. Glass type 3009. Serial Number 36552. National board # 7426. Built 2002. 4 Legs.
Item 11500-008
Used 50 gallon Dedietrich glass lined vertical tank. Clamped dished top. Dished bottom. Internal rated 25 psi / Full vacuum @ 400 degrees F. Glass type 3009. Serial Number 36553. National board # 7427. Built 2002. 4 Legs.
Item 11500-001
Used 30 gallon Pfaudler glass lined vertical tank. Internal rated 150 psi / Full vacuum @ 400 degrees F. Dished top and bottom heads. Glass type 9129. Serial number J050043. NB 50777. 3 legs.
Item 11500-057
Used 30 gallon Pfaudler glass lined jacketed tank. Internal rated 25/FV @ 450 degrees F. Jacket rated 100/115 @ 350 degrees F. Glass type 9115. Built 1992. Serial number R192-0525. National board number 46870. 4 legs.
Item 11500-049
Used 25 gallon Dedietrich vertical glass lined clamp top tank. Internal rated 30/FV @ 400 degrees F. Glass type 3009. Clamped top, dished bottom. National board number 7430. Serial number 36556. Built 2002.
Item 11500-098
Used 25 gallon Dedietrich glass lined vertical tank. Clamped dished top. Dished bottom. Internal rated 100 psi / Full vacuum @ 500 degrees F. Glass type 3009. Serial Number 35276. National board # 5902. Built 1992. 4 Legs.
Item 11500-054

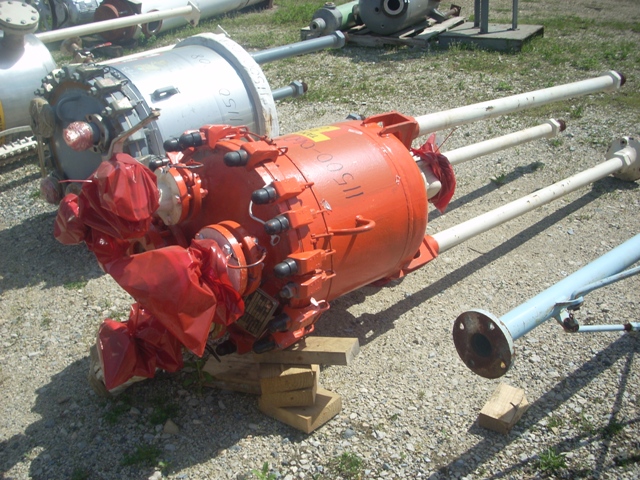

Used 25 gallon Dedietrich glass lined vertical clamped top tank. Internal rated 100/FV @ 500 degrees F, Min -20 degrees F @ 100/FV. Glass type 3009. National board number 5516. Serial number 34903. Built 1990. 3 legs.
Item 11500-060
Used 20 gallon Dedietrich glass lined vertical tank. Clamped dished top. Dished bottom. Internal rated 30 psi / Full vacuum @ 400 degrees F. Glass type 3008. National board # 2608. Serial number 32045. Built 1986. 3 Legs.
Item 11500-073
Used 20 gallon Dedietrich glass lined vertical clamped top tank. Internal rated 30 psi / Full vacuum @ 400 degrees F. Glass type 3009. Serial number 35557. NB 6213. Built 1994. Lug mounted.
