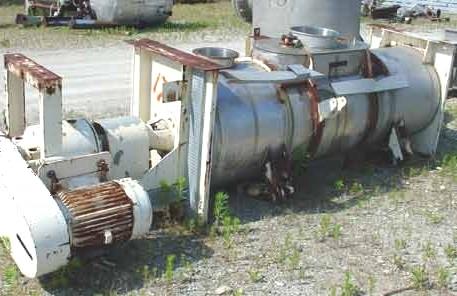

Used Lodige FKM 1200 D. Stainless steel. 26 cu ft working capacity. Non-jacketed mix chamber 31"" diameter X 98"" long, 4 1/2"" diameter shaft with (8) bolt-on plows and (2) end scrapers, (2) 15"" X 17 1/2"" side clean out doors, 9 1/2"" X 35 1/2"" long air operated flush valve discharge. Top openings: (1) 8"" flanged, (1) 20"" X 40"" with 14"" center flange. Packing glands. 15 kw (20 hp) drive 3/50/380v/1450 rpm belted through 12.7:1 ratio gearbox. Unitized.
Item 11385-001
Used Littleford Batch Type Plow Mixer, Model FKM-300-D, 6 cubic feet working capacity (10 total). 304 stainless steel Non-jacketed chamber 24 1/2"" diameter X 39"" straight side. 2 1/4"" diameter shaft with 4 bolt-on plow blades, 2 end scrapers, driven by a 10 hp, 3/60/230/460 volt, 1750 rpm motor thru a reducer ratio 12.81 to 1. Includes a side entering chopper with multiple stacked tulip blades, no motor, and air seals. Openings top (2) 8"", 4'', 2'', side access door. 4 1/2"" X 6 1/4"" center bottom outlet with a pneumatically operated door. Mounted on stainless steel ends, no legs.
Item 11515-003
Company
Contact
Email
Phone
Address
Requirements
Used Lodige Stainless Steel Ploughshare Mixer. 5 liter capacity, internal pressure atmospheric - .6 Liter jacket, maximum operating pressure 14.9 PSI. Built 1996. Serial Number 9602. Manufacture SMM. 60 Cycle. 110 Volt.
