Stainless Steel Reactors 100-999 Gallon
Used 325 gallon stainless steel reactor. Type 304 stainless steel. Internal #4 polish. Rated 20 psi @ 250 degrees F internal. 5# Vacuum internal. Jacket rated 30 psi @ 200 degrees F. Vessel 42"" X 48"" straight side with dished heads. Top head: 6"" agitator nozzle, 10"" manway with sight glass, (2) 1"" and (2) 2"" nozzles. Center bottom outlet 2"". Chemineer 2 hp drive model VLA-15 with dual prop agitator 450 rpm output speed. 4 baffles 3.5"" X 42"". Built 1990 by Tolan. NB Stamped 1875. Serial number 7051. Lug Mounted.
Item 11177-013

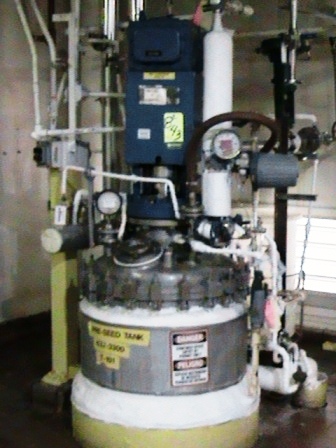

Used approximately 150 gallon stainless steel fermenter. Internal rated 116 PSI / Full vacuum @ 400 degrees F. Jacket rated 75/FV @ 400 degrees F. 1 tier 6 blade disc agitator. 2 hp Lightning drive model 71S2 17.5:1 ratio 100 rpm output. Vessel approximately 24"" diameter X 68"" straight side. Serial number 2252. National board number 1237. Built 1980. Alloy Fab.
Item 11500-078

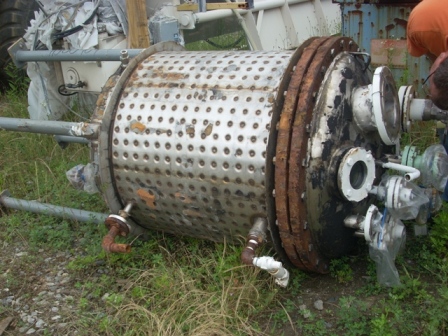

​Used approximately 120 gallon dimple jacketed reactor body. Internal rated 30 psi / Full vacuum @ 400 degrees F. Jacket rated 75 psi @ 400 degrees F. Bolted dished top. Dished bottom. 32"" diameter X 34"" straight side. SN 2784. NB 284. Built 1993. Stainless Fabricators Inc.
Item 11500-109

Used approximately 100 gallon 316 stainless steel dimple jacketed reactor. Internal rated 50 psi / Full vacuum at 400 degrees F. Jacket rated 75 psi @ 400 degrees F. Lightning Drive with mechanical seal, 5 hp 3 phase 60 cycle 230/460 volt 1750 rpm motor. Vessel is 24"" diameter X 48"" straight side. Bolted dished top. Dished bottom head. Top openings: 8"" agitator opening, (1) 4"" opening for sight glass, (1) 3"" nozzle, (1) 3"" opening for sight glass, (1) 2.5"" opening, (1) 2"" opening. (1) 1"" opening. 2"" center bottom outlet. NB 1982. SN 2924. Built 1986.
Item 11500-103
Company
Contact
Email
Phone

Address

Requirements

Used approximately 200 Gallon Alloy Fab T316 stainless steel reactor. Internal rated 40 psi/FV at 300 degrees F. Jacket rated 75 psi @ 300 degrees F. Approximately 3' diameter X 3' 1" straight side with dished top and bottom heads. T316 stainless steel dimple jacket. Top center mounted drive approximately 2 hp. Baffles. 1" Center bottom outlet. Top head has 10" X 14" handhold and various flanges. 4 legs. Insulated and sheathed in stainless steel. NB 1369. Serial Number 2405-2. Built 1982.
Item 12664-001
Used approximately 500 gallon Jospeh Oats stainless steel reactor. Atmos internal. Atmos jacket. Approximately 56"" diameter X 48"" straight side. Dished top and bottom heads. Conventional jacket on bottom 1/2 of straight side and bottom head. Philly gear drive with agitator.
Item 11437-048
Used approximately 300 gallon stainless steel reactor. Internal rated 55 psi @ 250 degrees F. Jacket rated 150 psi @ 325 degrees F. T316L stainless steel contacts. Off center Lightning drive with prop agitator. 1 hp 3 phase 60 cycle 208-220/440 volt motor. Vessel approximately 48"" diameter X 40"" deep straight side. Dished heads. Built 1980. Expert Industries. National board number 291. Serial number 4257.
Item 11500-080
Used approximately 500 gallon stainless steel dimple jacketed reactor. Internal rated 75 psi FV. Dimple jacket on side wall and bottom head rated 150 psi. Center mounted 1.5 Hp Lightning Drive model XJC with dual flight 3 blade prop agitator. Approximately 4' diameter X 4' 9' straight side. D&W Welding 1972. NB585. Lug Mounted. Top Manway. Center bottom outlet.
Item 12900-006
Used approximately 750 gallon stainless steel dimple jacketed reactor. Internal rated 75 psi FV. Dimple jacket on side wall and bottom head rated 150 psi. Lug Mounted. Top Manway. Center mounted 15 Hp Lightning Drive. Approximately 4' 6" diameter X 6' straight side. 1971. SN 4511 NB Stamped 552. Center bottom outlet. Lug Mounted. Top Manway.
Item 12900-004
Used approximately 500 gallon stainless steel dimple jacketed reactor.
Item 12900-006
Used approximately 750 gallon stainless steel dimple jacketed reactor.
Item 12900-004
