Ribbon Blenders

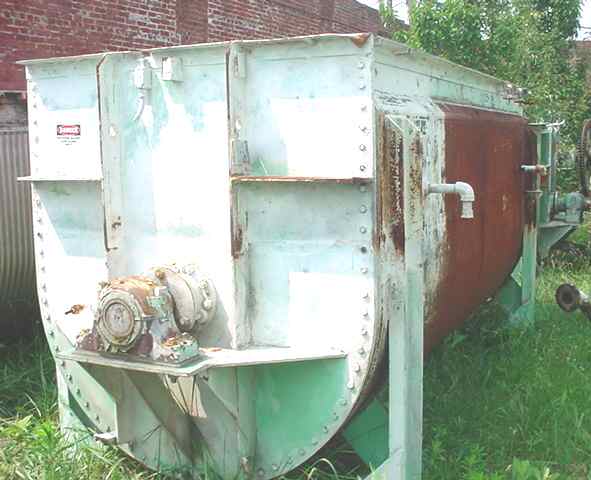

Used double ribbon blender 150 cuft capacity 50"" X 120"" carbon steel ribbon stainless steel trough. Jacketed trough. 40 hp motor 3 phase 60 cycle 230-460 volt 1180 rpm. Mfg by Day. Center bottom discharge. SN 82787A.
Item 11059-013

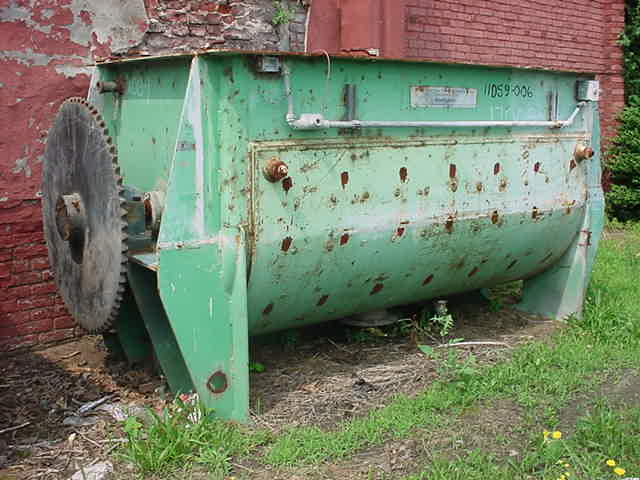

Used ribbon blender approximately 100 cuft carbon steel. Double ribbon interrupted flight. 48"" X 84"" long. Center bottom discharge. Jacketed trough. Jacket rated 40 psi @ 650 degrees F. Gearhead 20 hp 3 phase 60 cycle 230-460 volt 155 rpm output to sprocket. Mfg by Young. SN 222. NB 19.
Item 11059-006

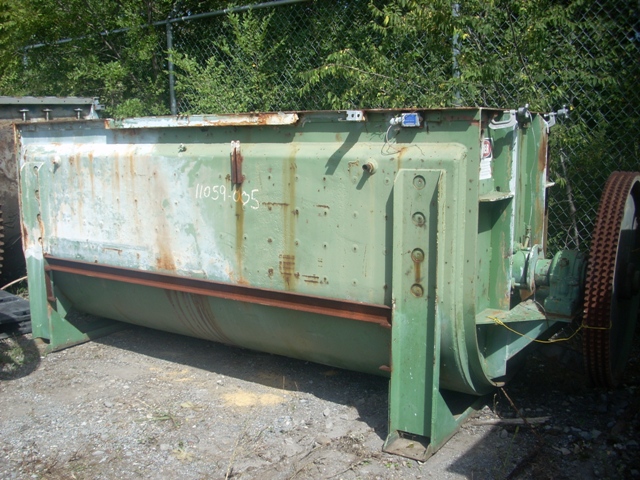

Used ribbon blender approximately 100 cuft carbon steel jacketed. Double ribbon interrupted flight. 40"" X 120"" long. Center bottom discharge. 20 hp motor 3 phase 60 cycle Link belt reducer output rpm 153.5 with sprocket providing approximately 22 rpm ribbon speed. Mfg by J H Day. SN 77973.
Item 11059-005

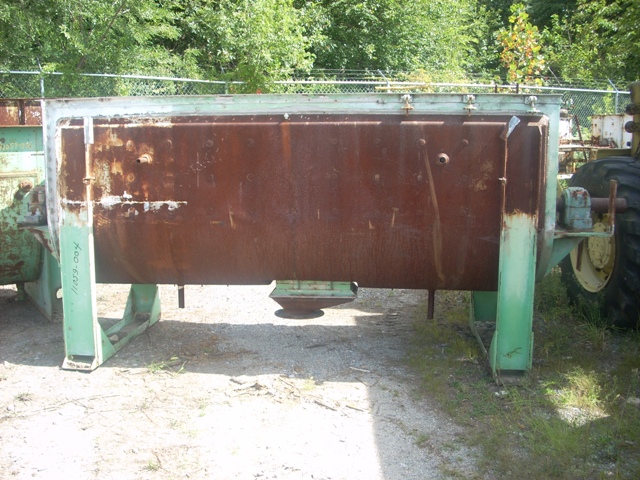

Used ribbon blender approximately 100 cuft carbon steel. Double ribbon interrupted flight. Stainless steel shell, carbon steel ribbon. 40"" X 120"" long. Center bottom discharge. Jacketed trough. Requires motor and gearbox. J H Day SN 82786A.
Item 11059-004

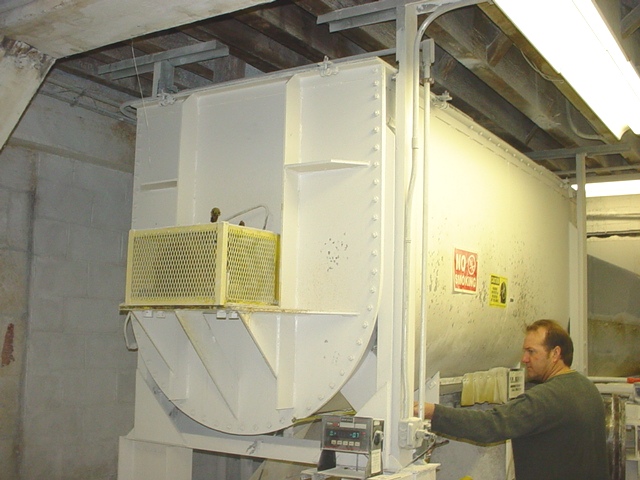

Used J H Day approximately 100 cubic foot carbon steel double ribbon blender. Trough 3' 6"" wide X 120"" long. Center discharge. Cover. Requires 25 hp motor 3 phase 60 cycle 230/460 volt 1740 rpm and a Faulk Reducer v belt driven.
Item 10977-002

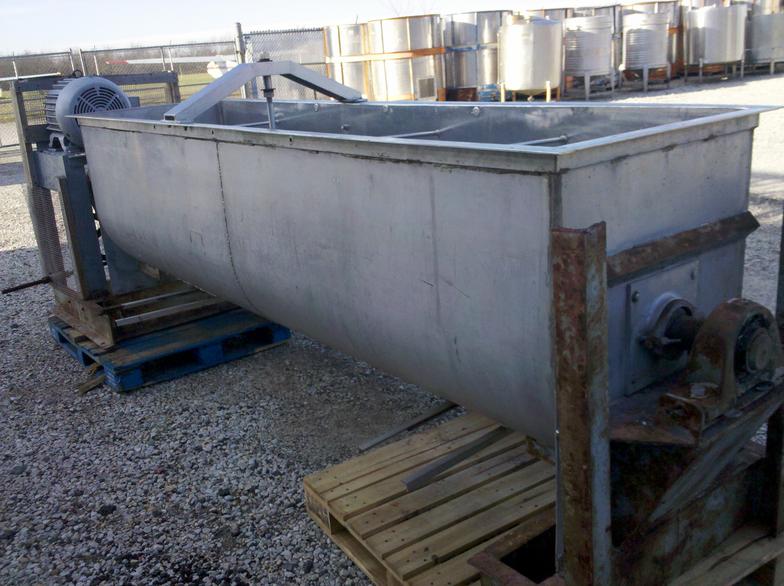

Used approximately 50 cubic foot working capacity stainless steel double ribbon blender. Approximately 30"" wide X 126"" long X 33"" deep. Motor with reducer to belt drive. 2 bottom outlets. Requires cover.
Item 11386-001

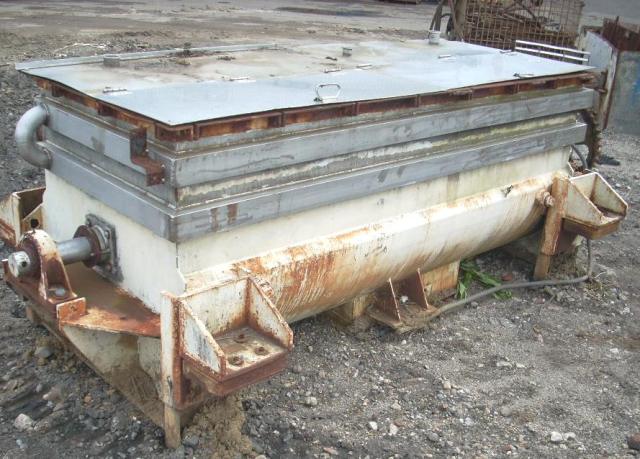

Used approximately 40 cubic foot stainless steel double ribbon blender. Trough is approximately 32"" wide X 7' long X 35"" deep. Center bottom outlet 4"" flange. Requires motor and reducer, chain and sprocket drive. Hinged cover. Unit is jacketed on sides and bottom.
Item 11421-001
Used approximately 20 cu ft stainless steel ribbon blender. 24" Wide X 72" Long. Outer ribbon 2” - interrupted - 3”x 7” paddles inner. Stainless Steel Lid. . 5 Hp motor 3 phase 60 cycle 208-230/460 volt 1750 rpm belt driven to gearbox with guard. Center bottom discharge with slide gate valve. Top mounted safety grate. Top mounted dump bin enclosure. Carbon steel legs provide approximately 38” clearance from outlet to ground.
Item 13980-003
Company
Contact
Email
Phone
Address
Requirements
Used approximatley 1 cu ft stainless steel cantilevered ribbon blender. Stainless steel ribbon, trough and cover. 1 Hp motor 3 phase 60 cycle 1725 rpm motor with reducer and chain. Bottom outlet with manual valve.
Item 12822-002
Used approximatley 10 cu ft stainless steel ribbon blender. Double ribbon. Stainless steel contacts. Carbon steel jacket. Built by Howes. SN 108910. Center bottom outlet with manual valve. Hinged lid with counter weights.
Item 12822-003
Used approximately 210 cuft stainless steel ribbon blender. Approximately 62" wide X 120" long X 70" deep. Double ribbon. Center bottom discharge. Ribbon and shell are stainless steel. Gearbox (No Motor). Built by MSC Engineering. Built 2000. Item 13971-001
Used approximately 5 cubic foot stainless steel double ribbon blender. Approximately 16" wide X 38" long X 19" deep. Center bottom discharge. Approximately 1.5 hp Motor and reducer. Top hinged cover. Mounted on legs. Built by Day.
Item 13015-001

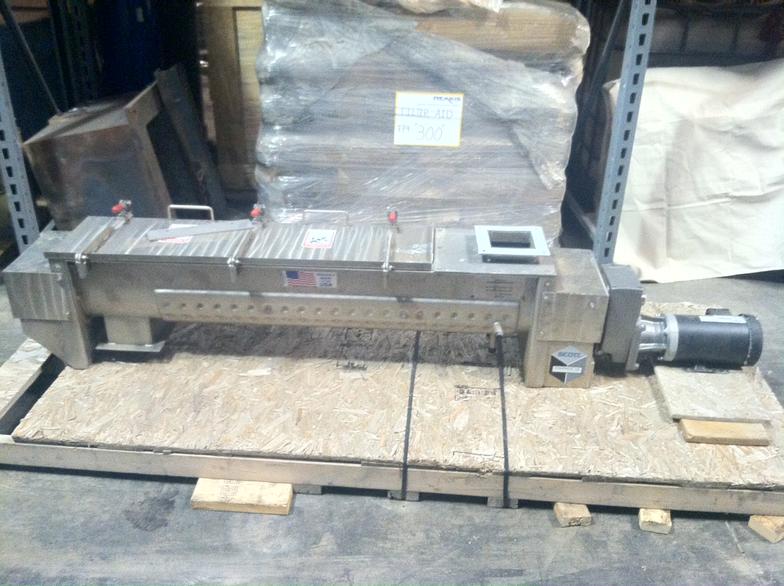

Unused Scott Tender Blender Model 1060 - 10" wide X 60" long. This unit has 1.36 cu. ft. rated mixing capacity at 50% of the total agitator displacement of 2.73 cu. ft. Endplates are 1/4" thick and the trough is 1/4" thick. All welded construction with T316 stainless steel contact. Exterior of mixer is glass bead finish. T304 dimple jacket for cooling on trough. Interior welds of mixer are continuous and standard mill finish. Agitator is solid shaft with adjustable paddles. Cover section is hinged. Inlet 6" X 8" flanged. Shaft seasl are air purge packed gland seals. 2 Hp TEFC motor with gearbox and variable speed frequency drive, 3 phase 460 volt.
Item 12234-001

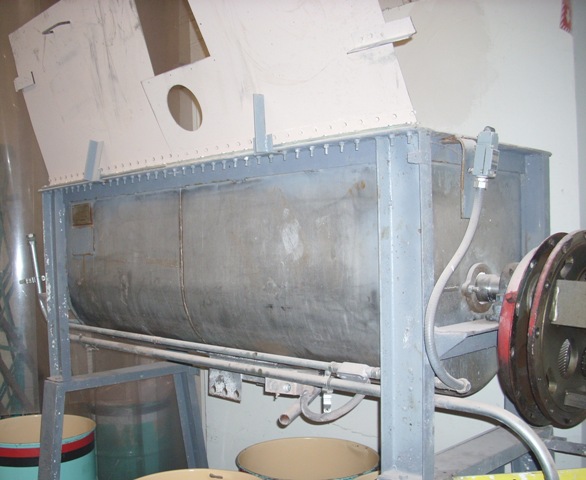

Used 20 cubic foot stainless steel ribbon blender. Double ribbon, interrupted. Ribbon 1/4' wide x 1.5"". 24"" wide X 6' long X 27"" deep. 6"" Center bottom discharge outlet. 2 Piece Hinged cover. Dual cycle motor, 15 hp 3 phase 60 cycle 230/460v, 15 hp 50 cycle 200/400v 1455 rpm. Needs new gear train.
Item 11351-001

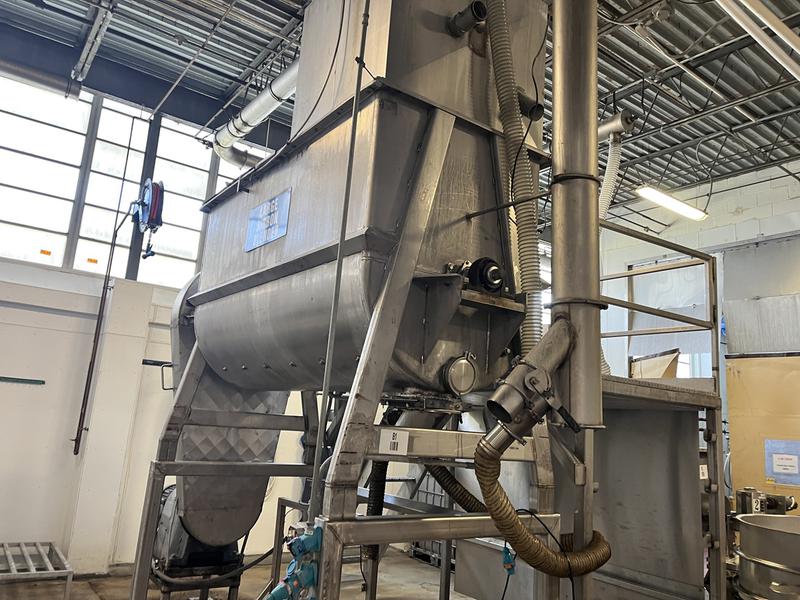

Used approximately 87 cuft stainless steel double ribbon blender. Model IMHS. Approximately 44" X 96" long. Stainless steel lid and safety grate - Approximately 20 Hp motor with chain and sprocket reducer. Built by Strong Scott. SN 2309. Item 13980-005
Surplus Paul Abbe Model RB-375 stainless steel double ribbon blender. Total volume 441 cuft. Working capacity 375 cuft. 75 Hp motor. 3 Phase 60 cycle. 230/460 volt motor. Blender speed 19 rpm. Trough dimensions 67.7" wide X 157.5" long X 78.8" deep. Split covers with hydraulic lift and safety grates. Center bottom outlet with valve. Weight w/o cover 20944 lbs.
Item 13977-001
2 Available - SANITARY
...........................................................................................................................................................................
