Stainless Steel Reactors 1000 Gallon & Larger

Used approximately 1000 gallon T304 stainless steel reactor. Internal rated 20 psi @ 250 degrees F. Conventional carbon steel jacket rated 30 psi @ 300 degrees F. Approximately 66" diameter X 66" straight side. Dished top and bottom head, with center bottom outlet. 10 Hp Chemineer drive, Model 4HTA10 right angle drive, 68 rpm output with dual tier 4 blade turbine agitator with steady bearing. Built by Tolan. 1990. National board 1878. Serial number 7046.

Item 12814-002

Company

Contact

Phone

Address

Requirements

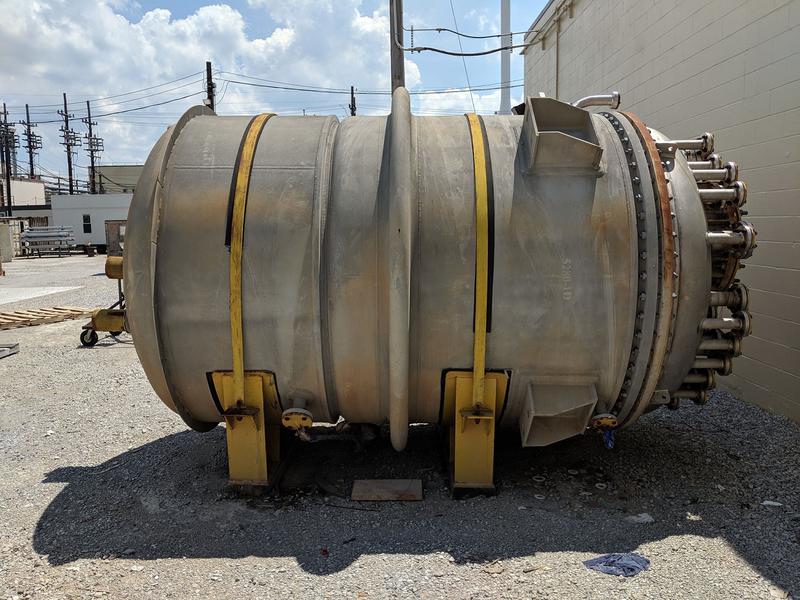

Unused approximately 3000 gallon T304 stainless steel reactor body. Shell ID 2100 mm. Shell Length TL-TL 2500. Bolted dished top. 2:1 Elliptical dished heads. Internal rated 50/FV @ 320 degrees F. Jacket rated 75 psi @ 320 degrees F. Center bottom outlet. Set up for top mounted drive and agitator. Expansion Joint. Lug Mounted. Various Top Nozzles. Shell 18 mm thick. Bottom head 21 mm. Drawings available. Built 2011. NB Stamped.

2 Available

Item 13071-001

Used 1300 gallon stainless steel half pipe coil jacketed reactor. Approx. 60" diameter X 96" straight shell. Internal rated 14/FV @350 degrees F. Jacket rated 150 psi @ 350 degrees F. Dished top and bottom heads. Half pipe coil jacket on half of straight side. Lightinin drive model 81C 3 CMX. 3 hp 84 rpm 6 blade disc agitator. 4 baffles. National board number 1348. Serial number 6248. Built 1980. TOLAN

Item 13081-001

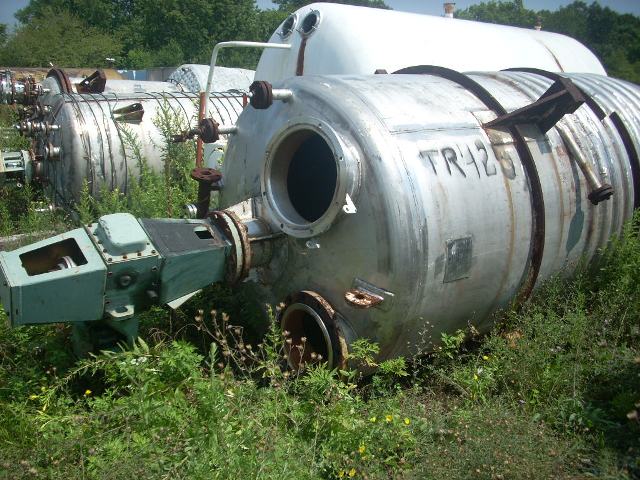

Used approximately 2000 Gallon gallon stainless steel reactor. Internal rated 15 psi/FV @ 200 degrees F. Jacket rated 150 psi / FV @ 200 degrees F. T316 stainless steel contacts. Vessel 6' diameter X 10' straight side. Built 1991. NB 187. SN 911610. Built by Steel Structures. 7.5 Hp motor 3 phase 60 cycle 1740 rpm. Lightning drive model 704-G.7.5. Impeller rpm approximately 36. 3 tier 45" 4 blade type P agitator.

Item 13906-001
