Shell & Tube Heat Exchangers - Condensers

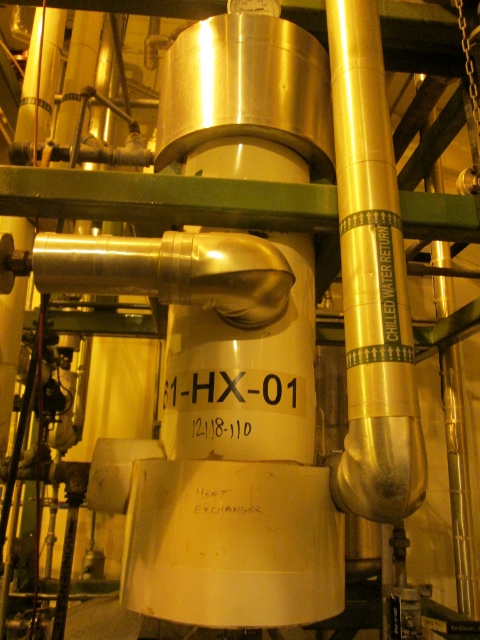

Used approximately 24 sqft surface are. Southern heat exchanger approximately 8" diameter X 36" long. Stainless steel tubes rated Full Vacuum at 250 degrees F. Approximately 3/4" Tubes stainless steel . Heads stainless steel. Carbon steel shell rated 10 psi @ 250 degrees F. Vertical design. Serial Number 86-396. Built 1987. Lug mounted. Southern Heat Exchanger.

Item 12118-110
Used approximatley 88 square foot Yula sanitary heat exchanger. Model WCV-2C-84AAS. 8" diameter X 7' 6" long. T304L Stainless Steel Shell. T316L Stainless steel tubes and heads. Sanitary tube connections. (45 U Tubes) X 1/2" X 18 BWG. Tubes rated 150 psi @ 300 degrees F. Shell rated 150 psi @ 300 degrees F. NB 11546. SN 18655. Built 2002.
Item 13050-009
Company
Contact
Email
Phone

Address

Requirements

Used approximately 119 square foot shell and tube heat exchanger. Stainless steel tubes, 3/4" diameter X 10' long, rated 75 psi @ 320 degrees F. Shell carbon steel 8" diameter X 10' long, rated 75 psi @ 320 degrees F. Stainless steel heads. Horizontal design. SN B2772. NB 2412. Built 1980. Perry Products. FTSX8.
Item 12536-001
Used approximately 297 square foot shell and tube heat exchanger. Stainless steel tubes, 3/4" diameter X 12' long, rated 75 psi @ 320 degrees F. Shell carbon steel 12" diameter X 12' long, rated 75 psi @ 320 degrees F. Stainless steel heads. Horizontal design. SN B2770. NB 2410. Built 1980. Perry Products. FTS-12. Expansion Joint.
Item 12536-002
Used approximately 577 sqft vertical exchanger. Approximately 16" diameter X 14' long carbon steel shell. (210) 3/4" Tubes, T316 stainless steel, rated 100/FV @ 590 deg F. Shell rated 100 psi @ 302 deg F. Stainless steel heads. Carbon steel shell. Lug Mounted. Built by Graham. NB 28466. Built 2000. SN 9941392-01.
Item 13050-018
Used approximatley 280 square foot shell and tube heat exchanger, size 14x144, 2 pass tubeside, Alloy 2205 tubes and tubesheet, 304 SS heads, 75psi/FV@350 shellside. 250psi/FV@300 tubeside. Type BEM, (121) tubes ¾ OD x 10 BWG x 12 ft, tubeside nozzles 4/4 inch, shellside nozzles 3/6 inch, horizontal on legs. Built 2014.
Item 12883-006
Used approximately 545 sqft vertical shell and tube exchanger. T304 Stainless Steel tubes (290) X 5/8" X 18 BWG. rated 125 psi @ 300 degrees F. Carbon steel Shell rated 125 psi @ 300 degrees F. Shell Approximately 16" diameter X 11' 6" long. SN 136614-01 Built by ITT. 2010. NB 202237.
Item 13050-016
Used approximately 525 sqft horizontal shell and tube exchanger. Rated 50 psi @ 320 degrees F. shell side. Rated 100 psi @ 320 degrees F tube side. All T304L stainless steel. 20" diameter X 120" long. (274) X 3/4" 18 BWG Tubes. Model FTSSX 20 525. NB 7232. SN B 7282. Built 2008. 2 saddles. Perry Products
Item 13050-012
Used 235 sqft vertical exchanger. Shell rated 100 psi @ 350 degrees F. T304 Stainless Steel Tubes rated 15/FV @ 300 degrees F. (30) 2" tubes X .065". Stainless steel heads. Carbon steel shell 18" X 15' long. Lug Mounted. NB 7677. SN 1202-13. Year 2003. JD Cousins. HT6361-1721.
Item 13050-019
Used vertical exchanger approximately 215 sq ft Approximately 14" diameter X 6' long shell. T304 Stainless Steel Tubes rated 15/FV @ 300 degrees F. Carbon steel Shell rated 50/FV @ 300 degrees F. Stainless steel heads. (220) Tubes 5/8" Diameter X 16 BWG. Mfg by JD Cousins. NB 7672. SN 1202-14. SN 2003. Vertical design. Lug mounted.
Item 13050-020
Used approximately 90 sqft shell and tube exchanger. All T316L Stainless Steel. Shell rated 75/FV @ 572 deg f. Tubes rated 125 psi @ 572 deg F. Expansion joint. 8" diameter X 10' long shell. (46) X 3/4" X 16 BWG Tubes. NB 372. SN AHE-691. Built 2001. Built by Alabama Heat Exchanger. 2 saddles.
Item 13050-013
Used approximately 86 sqft shell and tube exchanger. Rated 200 psi @ 400 deg F shell side. Rated 100 psi @ 400 deg F tube side. T316L Stainless steel heads and tubes. (44) X 3/4" X 18 BWG Tubes. Carbon steel shell 8" X 10' long. NB 5070. SN 87-460. Built 1988. Southern Heat Exchanger.
Item 13050-011
Used approximately 70 sqft shell and tube exchanger. Carbon Steel Shell rated 150 psi @ 300 degrees F. (85) X 5/8" X 18 BWG T304 Stainless Steel Tubes rated 150 psi @ 300 degrees F. Heads stainless steel. Shell Approximately 8" X 5' long. SN 138474-01 NB202392. Built 2010. ITT.
Item 13050-014
Used approximately 60 sqft heat exchanger. Carbon Steel Shell rated 150 psi @ 125 degrees F. (31) X 3/4" X 18 BWG T316L Stainless Steel Tubes rated 15/FV @ 125 degrees F. Approximately 6" diameter X 10' long shell. Heads are stainless steel. Built by Southern Heat Exchanger. NB 5051. SN 87-450A. Built 1988. Vertical design.
Item 13050-015
Used approximatley 60 sqft shell and tube head exchanger. U-Tubes stainless steel 50/FV @ 400 degrees F. Shell 100 psi @ 200 degrees F. Previous use as a condensor on a column. Shell 18" diameter X 5'6" long tube lenght. Horizontal design. Shell T316L stainless steel. Tubes 3/4" (61) U Tubes, T316 stainless steel. Head T316L stainless steel. SN 2749. Built 2000. NB 962. Built by Rubicon. 2000.

Item 12118-146
