Wiped Film Evaporators
Used approximately 1/2 square foot Artisan horizontal Rototherm Agitated thin film evaporator. Approximately 2" diameter X 12" long barrel. Stainless steel contacts. Stainless steel jacket. 3/4 hp motor 1 phase 60 cycle 115/230 volt 1725 rpm. Mounted on stand. Item 13961-001
Company
Contact
Email
Phone

Address

Requirements

Used Pfaudler wiped film evaporator system. Includes 4.2 sqft evaporator. 12" diameter. Rated atmospheric/Full vacuum @ 700 degrees F and 155/140 @ 700 degrees F jacket. 5 hp 4 DTW drive, variable speed 50-280 rpm. Contacts T316L stainless steel. Pfaudler SN R586-3037. NB 44316. Built 1986. Has (12) twelve wiper blades, PTFE, glass filled and slotted. Unit rebuilt by Pfaudler and unused since. Includes vacuum pump system on skid. Item 13968-002
UNUSED Pfaudler 13.4 Square Foot surface area wiped film evaporator system. Model 13.4-12-O-BVO. Internal Rated 14.5/FV @ 450 degrees F. Jacket rated 100 psi @ 450 degrees F. NB Stamped 54075. Serial Number 4275846. Shell material Type 316L stainless steel. Jacket material T316L stainless steel. Built 2018 and NEVER INSTALLED. Evaporator drive model 3DTWNC 291 rpm motor 3 Hp with lubricator. Dual CIP Spray nozzle. Rotor assembly open with centrifugal wipers. Sanitary inlet 1" - sanitary 2" bottoms outlet - 4" vapor outlet.  Skidded system including: External WFE Condenser approximately 40 square foot surface area. Type 316/316L stainless steel. Type BEU Tema. Tube / Shell T316/T316L stainless steel. 100 psi/FV @ 450 degrees F.   Bottoms product cooler Type BEU Tema. Tube / Shell T316/T316L stainless steel.  3 Positive Displacement Pumps T316 stainless steel. (Feed - Distillate - Bottoms Product) Liquid Ring Vacuum Pump T316 Stainless steel 5 hp. Rotary Lobe Blower T316 Stainless Steel 3 hp. Stainless Steel Internconnecting Piping Built 2018 NEVER INSTALLED
Item 13968-003
Used LCI Turba Film evaporator 26 square foot surface area. T316L stainless steel shell and jacket. Internal rated 50 psi @ 400 degrees F. Jacket rated 150 psi at 400 degrees F Built 1999. NB 78. SN 98005. Includes 250 sq ft surface area shell & tube exchanger.
Item 13090-005

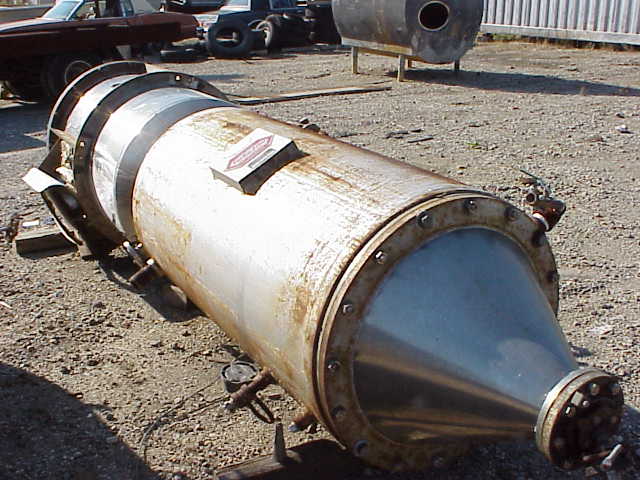

Used approximately 30 square foot surface area Rodney Hunt Turba Film evaporator. Approximately 24"" diameter X 121.5"" long. Rated 35 psi at 300°F. Jacketed section 60"". Vertical. National board 82. Serial Number 4-110-E. No Drive.
Item 10078-003
