USED Fitzpatrick Model L80 (Roll Compactor),Lab size. Mfg. 1982. 1-1/2"" x 8 Dia. Axial Grooved Rolls.All polished Stainless.Steel contact parts. Roll Drive: 3/1-1/2 HP 3 PH-60 HZ-208 Volt.Roll Speeds 5 and 10 RPM.Feed Auger Volt-1800/900 RPM belted to a Winsmith gear reducer plannetary type 131.7.1 Reduction.Feed Auger: 1-1/2"" Dia. Single Flight with additional larger flight for pre compression. Auger Drive: 1 HP DC Variable speed direct connected to gear reducer.Auger Speed 300 RPM. Air over oil booster system to (2) hydraulic cylinders, maximum roll separation force of 26,000#.80 PSI plant air required. Operator control panel for both motors, ampmeters, start/stop buttons, air regulator, air and oil pressure gauges, and oil system refill selector. NEMA 12 Cabinet, 304 Stainless Steel contruction.Electrical control cabinet on rear of machine in NEMA 12 Cabinet.
Item: 11341-002
Compactors

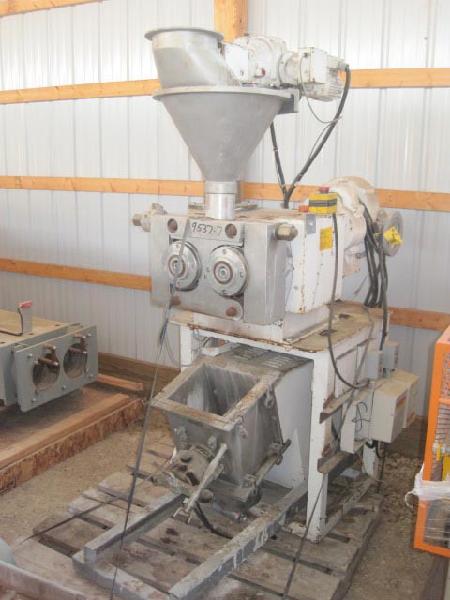

Used Bepex L200/50P Compactor. Stainless steel construction. 200MM diameter X 50 mm face, cantilevered rolls.

Item 11759-003
Company
Contact
Email
Phone

Address

Requirements

Surplus Fitzpatrick Chilsonator system model IR520 M5A. System includes: Fitzpatrick Compactor Mill Model IR520 with dual set of rolls both Axial and Knurled. 30" Sifter vibratory screener. Bag Dump Station. Pneumatic Conveying system with hopper and receiver. M5A Fitzmill with multiple screens. With controls and spare parts. All sanitary construction. Built in 2008 - installed and run for a very short period of time. Unit is still set up.
Item 12958-001
