Sigma Type Mixers
Used 30 gallon Morton Mixtruder, 30 gallon working capacity, carbon steel construction, extruder discharge with 10 H.P. drive, sigma blades with 15 H.P. main drive, with cover, 1981, Model BD.4, Serial No. 22853M.
Item 10728-001

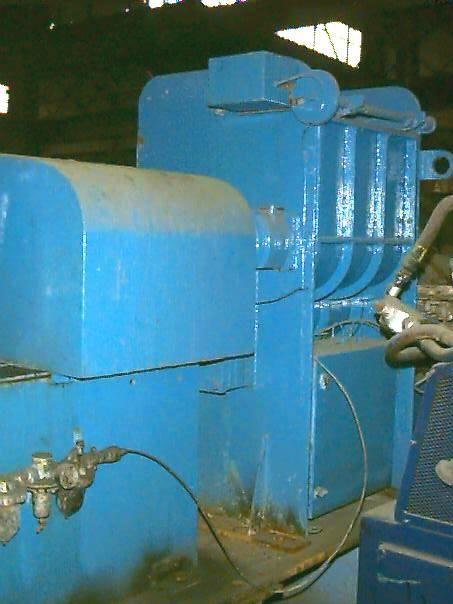

Used Baker Perkins/Guittard lab size mixer extruder, model LEX8. Total 8 liter. 1.33 gallon working capacity, 2.125 total, 304 stainless steel. Carbon steel jacketed bowl 8-1/2"" front to back x 8-3/4"" left to right x approx 7-1/2"" deep. 317 stainless steel tangential sigma blades, geared one end. Domed top cover with sightglass, suitable for vacuum. 28"" diameter x 14"" long screw discharge. Both driven by an approx 2 hp motor. Includes a C W Brabender model T303 Thermotron heater. Unit mounted on a cabinet with control panel and casters. Built 1984.
Item 11197-001

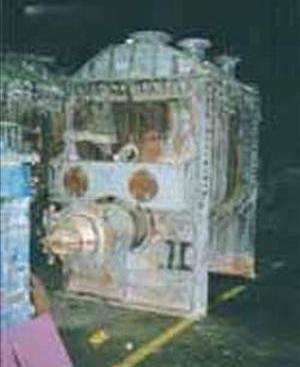

Used Werner & Pfleiderer Mixer/Extruder, Type UK20X-AU-4V. 316 Stainless steel construction. Total capacity 793 gallon (3000 liter); working capacity 530 gallon (2000 liter). Bowl 56.6" x 65.5" x 54.6" deep (1450 mm x 1680 mm x 1400 mm deep). Sigma style blades, 7.8" (200 mm) diameter. Double jacketed, rated for 180 psi (12 bar) and vacuum. 11.7" (300 mm) discharge screw. Driven by a Flender #177-110-115-7A gearbox, 57 hp/38 kw. Sonder 1/728. N1 465-265 rpm. N2 15/112-5 rpm. Overall dimensions (mixer only) are: 15'5" long x 6'2" wide x 8'9" high (4750 mm long x 1900 mm wide x 2750 mm high).

Item #11830-001

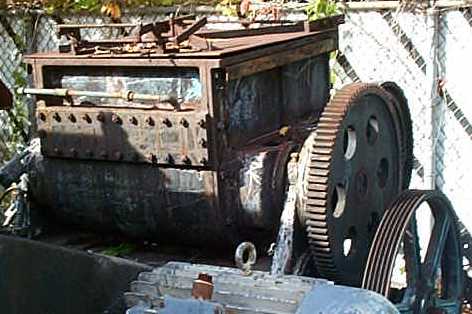

Used Baker Perkins 100 Gal. Sigma Blade Mixer, Jacketed bowl Carbon Steel, Model # 15 JUE, 150 Gal. Total Capacity, Hydraulic Tilt Discharge, Single end Gear Driven, 30 HP 220v Explosion Proof Motor, With Cover.

Item 11811-001
