Used 100 gallon Dedietrich glass lined reactor. Internal rated 150/FV @ 500 degrees F. Jacket rated 100/85 PSI @ 500 degrees F. Clamped top head rated 25 PSI/FV @ 500 degrees F. Top head national board #2164, serial #31498, built 1979. 3 blade retreat curve agitator with calibration lines. Baffle. Reactor body national board 6188, serial 35523, glass 3009, built 1990.
Item 11500-048
Glass Lined Reactors 100 - 999 Gallon
Used 750 gallon DeDietrich glass lined reactor body. SA series. Internal rated 100 psi / full vacuum @ 500 degrees F. Jacket rated 90 psi @ 500 degrees F. Glass type 3009. Built 1991. National board 5791. Serial # 35145.
Item 10699-004

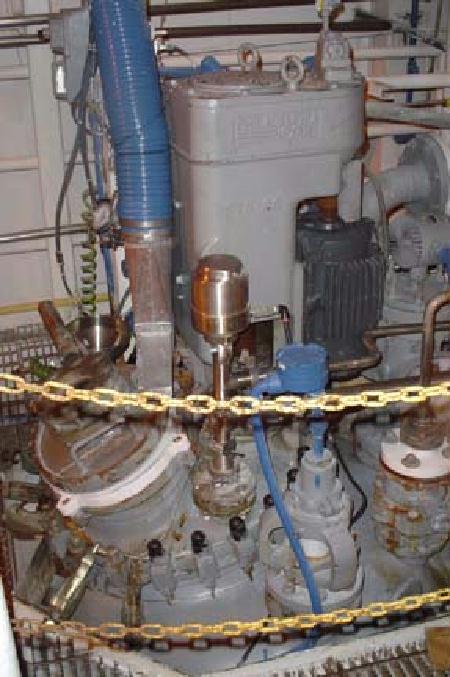

Used DeDietrich approximately 300 gallon Mdl SA glass lined reactor. Rated 100 psi/FV at 500 Deg F internal. Closed welded top. Dished bottom. Jacket on bottom and side rated 450 PSI@ 500 deg F. With DeDietrich Mdl PTE 06 and crylock agitator.
Item 11288-002


Used 200 gallon Pfaudler clamped top glass lined reactor. 40"" diameter. With 3 DTW drive 10:1 ratio. 3 blade agitator. Lubricator. Valve. Manway cover. Internal stainless steel coils. On legs.
Item 11480-017
Used 200 gallon Dedietrich glass lined reactor. Internal rated 90/FV @ 500 degrees F. Jacket rated 90/105 @ 500 degrees F. Clamped top. 3 blade retreat curve agitator. Baffle. All white glass. Type 3009. Serial 1234. National board number 214. Built 1992.
Item 11500-067

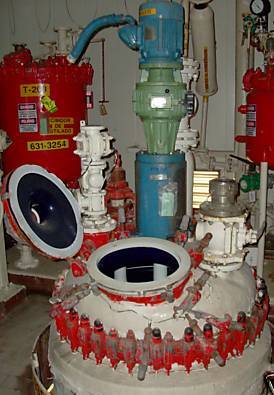

Used 200 gallon Dedietrich glass lined reactor. Internal rated 90/FV @ 500 degrees F. Jacket rated 90/105 @ 500 degrees F. Clamped top. 3 hp 3 phase 60 cycle 230/460 volt motor with Lenze reducer 30-177 rpm. 3 blade retreat curve agitator with calibration lines. Glass type 3009. Baffle. Serial 34684. National board number 5318. Built 1990.
Item 11500-047

Used 200 gallon Dedietrich glass lined reactor. Internal rated 25/FV @ 400 degrees F. Jacketed. Clamped top. 3 blade retreat curve agitator with calibration lines. Baffle. National board number for top head 6224.
Item 11500-053

Used 200 gallon Dedietrich glass lined clamped top reactor. Reglassed by Pfaudler. Internal rated 100/FV @ 400 degrees F. Jacket rated 90 psi @ 400 degrees F. Jacket on bottom half of vessel and bottom head only. .33-2 hp motor 3 phase 60 cycle 230/460 volt 220-1750 rpm. 3 blade retreat curve agitator. Baffle. Top Manway with cover. Glass type 9129. Serial number J003721. National board number 48162. Glassed 1996.
Item 11500-023
Used 200 gallon Pfaudler clamped top reactor. Internal rated 100/FV @ 400 degrees F. Jacket rated 90 psi @ 400 degrees F. Jacket on bottom side and bottom head. Approximately 5hp motor with right angle drive, 3 blade retreat curve agitator. Baffle. Serial number J003723. National board number 48163. Built 1996. Glass type 9125.
Item 11500-065
