Double Cone Vacuum Dryers

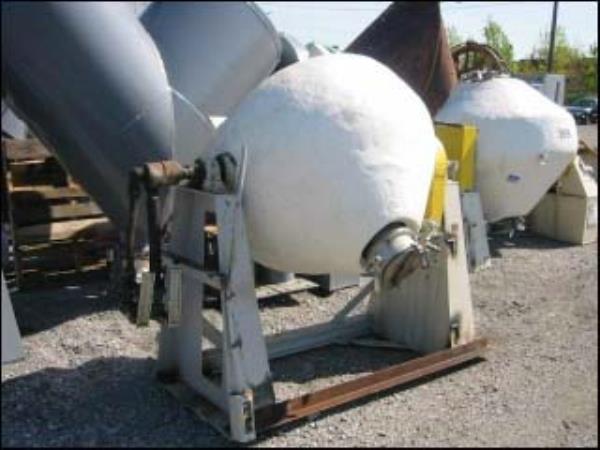

Used 10 cu. ft. Patterson-Kelley Double Cone Vacuum Dryer, 304 stainless steel construction, rated full vacuum internal, jacketed for 50 PSI, 40#/cu. ft. max. material density, 14" feed opening with cover, 8" discharge with butterfly valve, on stands with 2 H.P. 220/440 motor drive, 25 RPM shell speed.

Item 12094-001
Company
Contact
Email
Phone

Address

Requirements

Used Paul Abbe Model RCVD 30 double cone vacuum dryer. Approximately 5 cubic foot capacity. Stainless steel construction. 30" diameter. Rated Full Vacuum internal at 250 degrees. F. Jacket rated 14.7 psi at 250 degrees F. 1/2 Hp Reeves Varispeed drive. Serial number A47201. Built 1998. Controller Class 1 Groups BCD. Class 2 Groups EFG. Mounted on Stand. Includes: Sterlco model M9016-J1 Temp control for oil for jacket. 3 phase 60 cycle 460 volt. 24000 watt - 115 volt.
13024-002
Used approximately 20 cuft stainless steel Komline Sanderson jacketed tumble dryer. SN B27. Built 1966. Vacuum tube. Drive and is insulated.. Rated 15 psi internal and 45 psi on the jacket.
Item 12640-007
