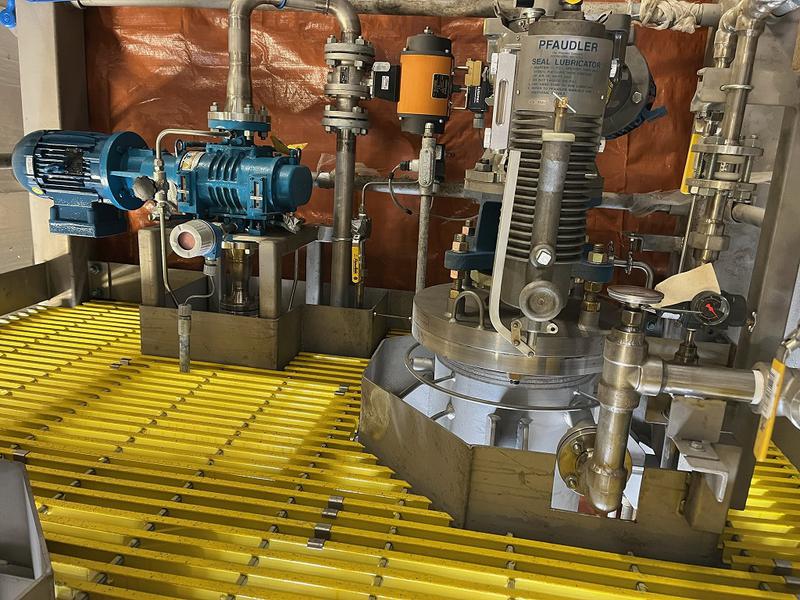

Pfaudler Wiped Film Evaporator with Vacuum System
UNUSED Pfaudler 13.4 Square Foot surface area wiped film evaporator system. Model 13.4-12-O-BVO. Internal Rated 14.5/FV @ 450 degrees F. Jacket rated 100 psi @ 450 degrees F. NB Stamped 54075. Serial Number 4275846. Shell material Type 316L stainless steel. Jacket material T316L stainless steel. Built 2018 and NEVER INSTALLED. Evaporator drive model 3DTWNC 291 rpm motor 3 Hp with lubricator. Dual CIP Spray nozzle. Rotor assembly open with centrifugal wipers. Sanitary inlet 1" - sanitary 2" bottoms outlet - 4" vapor outlet.

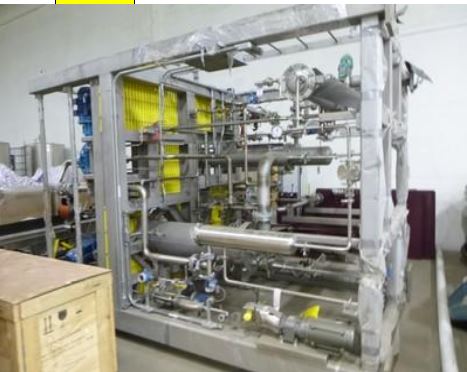

Skidded system including:
  • External WFE Condenser approximately 40 square foot surface area. Type 316/316L stainless steel. Type BEU Tema. Tube / Shell T316/T316L stainless steel. 100 psi/FV @ 450 degrees F.
  • Bottoms product cooler Type BEU Tema. Tube / Shell T316/T316L stainless steel.
  • 3 Positive Displacement Pumps T316 stainless steel. (Feed - Distillate - Bottoms Product)
  • Liquid Ring Vacuum Pump T316 Stainless steel 5 hp.
  • Rotary Lobe Blower T316 Stainless Steel 3 hp.
  • Stainless Steel Internconnecting Piping

Built 2018 NEVER INSTALLED

Item 13968-003
